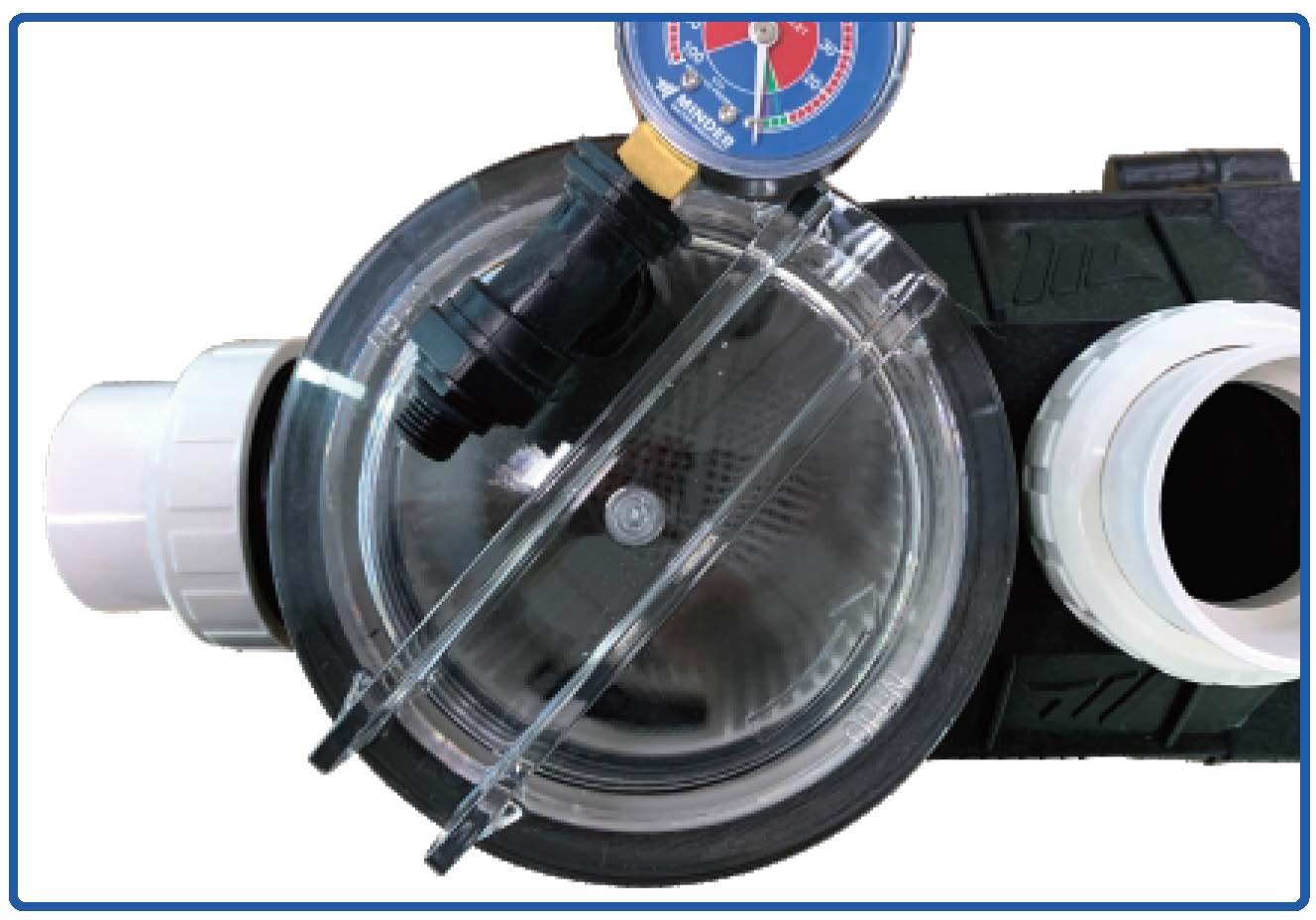

MXB Series Pump
Minderspeed / Ultra-Quiet AC Bearing Pump
A high-performance circulation pump engineered for near-silent operation, corrosion-resistant construction, and reliable long-term output — built for pools, spas and water features of every scale.
MXB Series Pump
The MXB Series employs the latest AC bearing technology to minimize noise and vibration during operation while maximizing durability and performance. Every wet-end component is built from corrosion and UV resistant engineered plastic, giving the pump a long operating life even in demanding outdoor installations.
- Ultra-Quiet Operation — Rated 61dB at 1 Metre
- Corrosion & UV Resistant Wet-End Construction
- Built-In Over-Heating & Overloading Protection
- Extra-Large Basket for Longer Cleaning Intervals
- 2" Angle-Adjustable Union Standard on All Models
Technical Specifications
Six models covering single and three-phase supply, from 1 HP to 3 HP output.
| Model | Code | Connections | Voltage | Phase | Amp | Input (kW) | Output (HP) | RPM |
|---|---|---|---|---|---|---|---|---|
| MXB100 | 90889 | 2.0" | 220–240 | 1 | 3.8 | 0.75 | 1 | 2850 |
| MXB150 | 90890 | 2.0" | 220–240 | 1 | 5.2 | 1.1 | 1.5 | 2850 |
| MXB200 | 90891 | 2.0" | 220–240 | 1 | 7.0 | 1.5 | 2 | 2850 |
| MXB200 | 90991 | 2.0" | 380–400 | 3 | 7.0 | 1.5 | 2 | 2850 |
| MXB300 | 90892 | 2.0" | 220–240 | 1 | 10.0 | 2.2 | 3 | 2850 |
| MXB300 | 90893 | 2.0" | 380–400 | 3 | 10.0 | 2.2 | 3 | 2850 |
| Model | Flow @ 6m Head (m³/h) | Max Water Temp | Max Ambient Temp | Noise @ 1m |
|---|---|---|---|---|
| MXB100 | 16.2 | 50°C | 50°C | 62 dB |
| MXB150 | 21.6 | 50°C | 50°C | 63 dB |
| MXB200 | 26.1 | 50°C | 50°C | 65 dB |
| MXB300 | 33.8 | 50°C | 50°C | 69 dB |
Built for Performance
Every MXB pump combines quiet operation with durable engineering for hassle-free service.
Ultra-Quiet Operation
So quiet you may not notice it running — rated at 61dB at 1 metre distance.
Reliable Wet-End
Corrosion and UV resistant engineered plastic with over-heating and overloading protection.
AC Bearing Performance
Unique AC bearing technology delivers effective power for optimum flow and fast turnover.
Extra-Large Basket
Generous strainer basket capacity means longer intervals between cleaning.
Adjustable Union Fitting
All models ship with a 2" angle-adjustable union (traditional union on request).
Self-Priming
Self-primes at up to 2 metres for straightforward installation.
