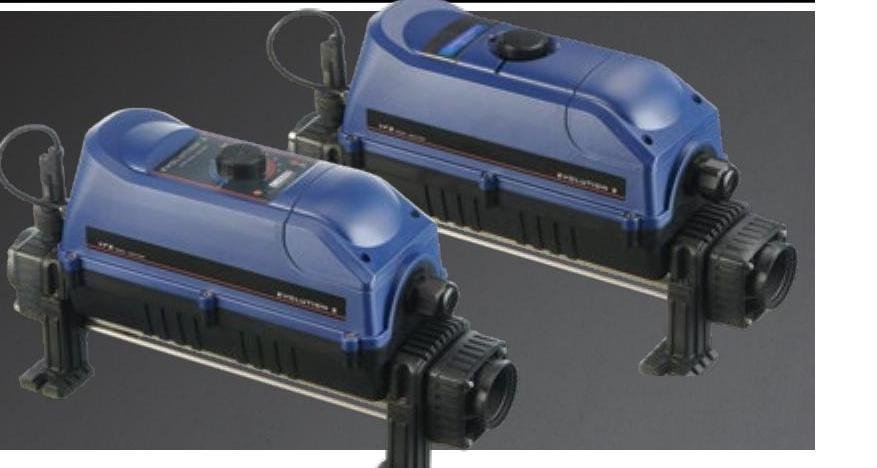

Evolution 2 Titanium Heater
A fully titanium heater providing efficiency, safety and reliability to effortlessly heat your pool or spa to the desired temperature — in ten power options from 1kW to 24kW.
Made in England
Evolution 2 Titanium Heater
Elecro's upgraded Evolution 2 combines a titanium flow tube and titanium heating element with Vortex, long-life, stay-clean technology for 100% efficiency throughout the product's life. Compact and pre-wired, it installs on the floor or wall in minutes.
- ✓ Ten Power Options (1–24kW)
- ✓ Titanium Flow Tube & Element
- ✓ Analogue or Digital Control
- ✓ Ultra-Reliable Flow Switch
- ✓ Floor or Wall Mounting
Technical Specifications
Ten power options across single-phase and three-phase supply, all built around a titanium flow tube and heating element.
| Output | Code (Analogue) | Code (Digital) | Amp | Net Weight | Gross Weight |
|---|---|---|---|---|---|
| 1 kW | E2-1-1 | E2D-1-1 | 4.3A | 4.3 kg | 5.5 kg |
| 2 kW | E2-1-2 | E2D-1-2 | 4.3A | 4.3 kg | 5.5 kg |
| 3 kW | E2-1-3 | E2D-1-3 | 4.3A | 4.3 kg | 5.5 kg |
| 4.5 kW | E2-1-4 | E2D-1-4 | 4.3A | 4.3 kg | 5.5 kg |
| 6 kW | E2-1-6 | E2D-1-6 | 4.3A | 4.3 kg | 5.5 kg |
| 9 kW | E2-1-9 | E2D-1-9 | 4.6A | 4.6 kg | 5.8 kg |
| 12 kW | E2-1-12 | E2D-1-12 | 4.6A | 4.6 kg | 5.8 kg |
| 15 kW | E2-1-15 | E2D-1-15 | 5.4A | 5.4 kg | 6.6 kg |
| 18 kW | E2-1-18 | E2D-1-18 | 5.4A | 5.4 kg | 6.6 kg |
| Output | Code (Analogue) | Code (Digital) | Net Weight | Gross Weight |
|---|---|---|---|---|
| 15 kW | E2-3-15 | E2D-3-15 | 5.4 kg | 6.6 kg |
| 18 kW | E2-3-18 | E2D-3-18 | 5.4 kg | 6.6 kg |
| 24 kW | E2-3-24 | E2D-3-24 | 5.4 kg | 6.6 kg |
Built on Titanium
Every Evolution 2 pairs premium materials with smart engineering for years of reliable heating.
Ten Power Options
Ranging from 1kW to 24kW to match any pool or spa size.
Titanium Construction
Grade 1 titanium flow tube and heating element for long-term corrosion resistance.
Ultra-Reliable Flow Switch
Gold-tipped reed switch with titanium fulcrum pin allows safe operation.
Analogue or Digital Control
1.2°C analogue differential or 0.5°C digital differential with multi-lingual display.
Vortex Stay-Clean Technology
Long-life heating element technology maintains 100% efficiency throughout its life.
Silent, Compact Design
Fully equipped and pre-wired for fast, quiet operation floor or wall mounted.
