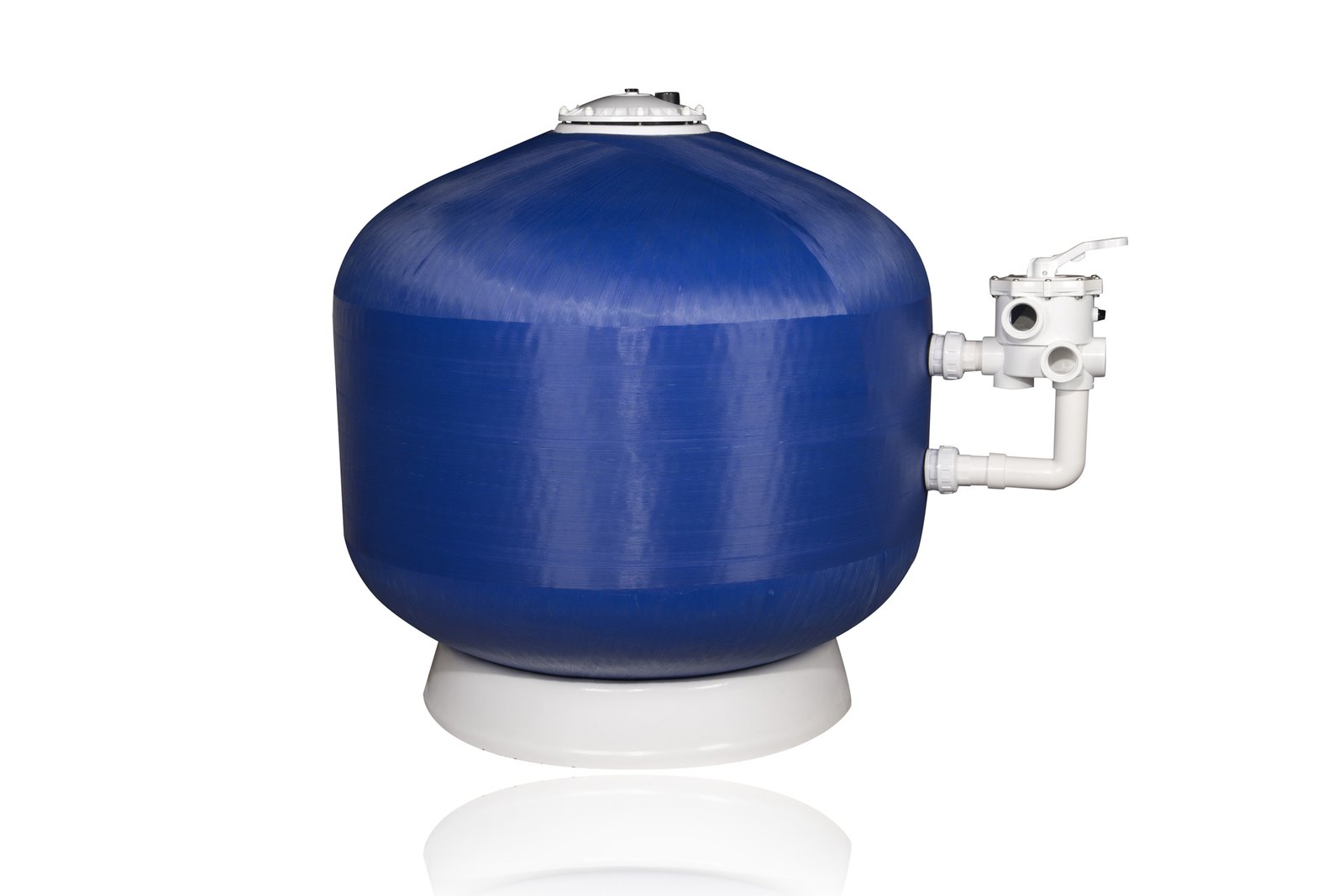

BWS Grande Sand Filter
Bobbin Wound Side Mount Series / Pool Filtration
Heavy-duty side-mount sand filter with a continuously wound fibreglass tank for maximum strength — aesthetic, durable and reliable for residential and commercial pools.
BWS Grande Sand Filter
Built with an inner fibreglass bladder for implosion resistance and a gel-coat layer to prevent capillarity, then continuously wound with fibreglass strands to form a high-strength, non-corrosive vessel. The wide top cover gives easy, comfortable access for maintenance, and the fibreglass base keeps the whole unit strong and durable.
- Continuously Wound Fibreglass Tank
- Fibreglass Base for Strength & Durability
- Easy-Access Top Cover Design
- 2" Valve or 3" Flange Connection Options
- Max Working Pressure 2.5 kg/cm²
Technical Specifications
Available in 4 sizes from 1050mm/42" to 1200mm/48" to suit any pool.
| Code | Ø Filter (mm) | H (mm) | Connection | Flow Rate (m³/h) | Pool Volume (m³/8h) | Sand (kg) | Net Weight (kg) |
|---|---|---|---|---|---|---|---|
| 03010310 | 1050 | 1150 | 2" | 43 | 344 | 680 | 66.5 |
| 03010312 | 1050 | 1150 | 3" Flange | 43 | 344 | 680 | 71.5 |
| 03010313 | 1200 | 1250 | 2" | 56 | 448 | 850 | 81.5 |
| 03010315 | 1200 | 1250 | 3" Flange | 56 | 448 | 850 | 86.5 |
Built for Performance
Every BWS Grande filter combines durable construction with smart engineering for hassle-free operation.
Reinforced Fibreglass Tank
Inner fibreglass bladder with gel-coat layer, continuously wound for a non-corrosive, high-strength vessel.
Easy-Access Top Cover
Wide top cover design gives comfortable access to the inside of the tank for simple maintenance.
Fibreglass Base
A strong, durable fibreglass base supports the tank and keeps the whole unit stable.
Flexible Connections
Available with either a 2" valve connection or a 3" flange, depending on the model.
High Pressure Rating
Rated for a maximum working pressure of 2.5 kg/cm² across all sizes.
Injection-Moulded Components
All components are injection moulded from high-strength engineering plastics for long service life.
